Automatic three-dimensional CNC pipe bending machine series

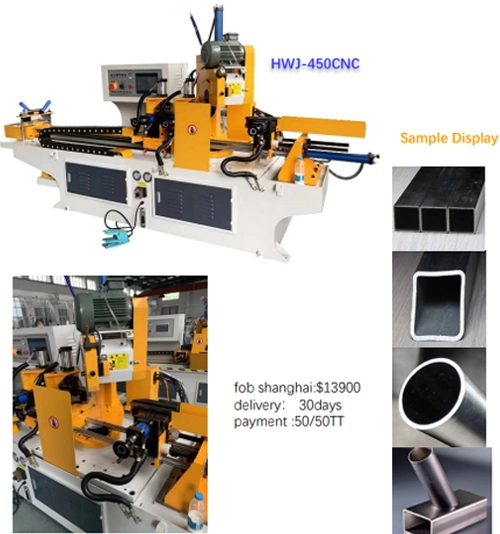

| Machine Type | Machine Type | HWJ-450CNC Vertical Cutting Machine |
| Sawing Capacity | Sawing Capacity | Φ450 × 3 mm |
| Sawing Angle | Sawing Angle | -45° to +45° |
| Applicable Saw Blade | Applicable Saw Blade | Φ350 mm - Φ405 mm |
| Voltage | Voltage | 380V / 50Hz |
| Maximum Cutting Height (mm) | Maximum Cutting Height (mm) | Round: 140 mm, Square: 100 × 100 mm |
| Maximum Sawing Width (mm) | Maximum Sawing Width (mm) | 140 mm |
| Feeding Accuracy (mm) | Feeding Accuracy (mm) | ±0.02 |
| Spindle Accuracy (mm) | Spindle Accuracy (mm) | ±0.01 |
| Single Feeding Stroke (mm) | Single Feeding Stroke (mm) | 30 - 1500 |
| Feeding Cutting Method | Feeding Cutting Method | Automatic feeding, automatic clamping, automatic cutting |
| Cutting Material | Cutting Material | Iron pipe, galvanized pipe, 45# steel, copper pipe and other metal materials |
| Cut Shape | Cut Shape | Round tube, square tube, rectangular tube, L-shaped tube and other profiles |
| Machine Size | Machine Size | 3500 × 1300 × 2100 mm |
| Machine Weight | Machine Weight | 1500 kg |
| Application | Suitable for cutting pipes of different lengths and sizes. Simply enter the required length on the control panel, and the machine supports automatic secondary feeding. | |
