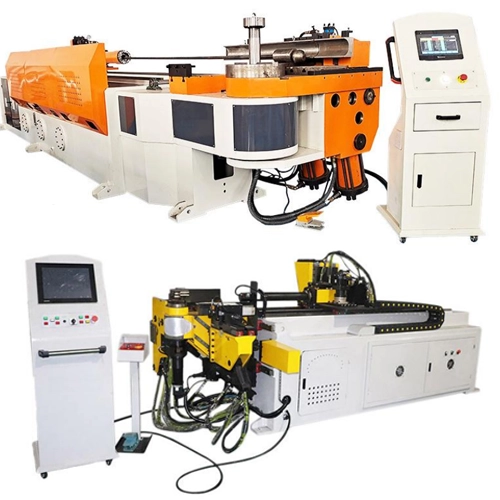

Automatic three-dimensional CNC pipe bending machine series

  • This machine adopts PLC control, plus numerical control module, human-machine interface dialogue, simple and easy program setting.
  • Freely selectable manual, semi-automatic, fully automatic, slow bending, slow core extraction function; feeding (Y), corner (B) for servo control, bending (C) for hydraulic drive or servo drive.
  • Program setting, each gear can set 20 automatic feeding, automatic corner and 20 bending angle, can be memorized storage of 100 sets of files.
  • In the process of mobile controller on the touch screen display feeding, corner, bend pipe processing values, and also sets the single clutch execution action, semi-cycle operation, and full cycle.
  • With automatic error and fault detection function, when there is any abnormal action or any danger exists then the machine will immediately stop to send an alarm, display the cause of the failure to help the operator troubleshoot.
Enquire Now

Specification

Model HWD-25CNC HWD-38CNC HWD-50CNC HWD-63CNC HWD-75CNC HWD-80CNC HWD-89CNC HWD-114CNC HWD-130CNC HWD-168CNC
Max pipe O.D. φ25x1.5 φ38x1.5 φ50x2 φ63x2 φ75x4 φ80x5 φ89x5 φ114x5 φ130x6 φ168x10
Range of bending radius 10-150 20-200 35-250 35-300 50-400 50-450 65-480 65-520 65-550 100-550
Feeding 1.2 1.2 1 0.8 0.6 0.6 0.5 0.5 0.4 0.3
Corner 360° 360° 300° 300° 180° 180° 160° 160° 120° 90°
Bending 160° 120° 90° 90° 70° 70° 50° 45° 35° 30°
Feeding ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Corner ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Bending ±0.1 ±0.1 ±0.1 ±0.15 ±0.15 ±0.15 ±0.15 ±0.15 ±0.2 ±0.2
Max bending angle 190° 190° 190° 190° 190° 190° 190° 190° 190° 190°
Pump motor power 4 4 5.5 5.5 7.5 11 11 15 18 22
System pressure 14 14 14 14 15 15 15 15 15 15
Overall dimension 3.2x0.9x1.2 3.5x0.9x1.2 3.8x1x1.3 3.8x1x1.3 4.5x1.2x1.4 4.5x1.2x1.4 4.6x1.3x1.4 4.8x1.3x1.4 5.8x1.4x1.5 7.2x1.9x1.5
Weight 1 1.1 1.6 1.8 3.2 3.4 4 4.5 10 15
