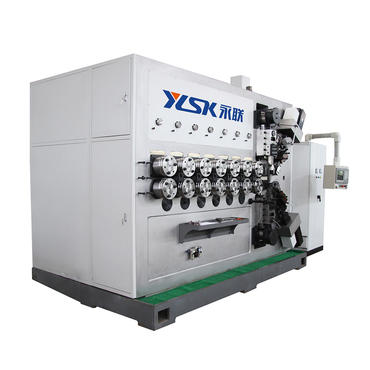

YLSK 7230 CNC SPRING COILING MACHINE

YLSK-7230 CNC computer coiling spring machine is mainly used for rolling

Enquire Now

Specification

Parameters/Model YLSK-7230 CNC
Wire diameter (mm) Ø10.0～Ø23.0
Axis Count 7 Axis
Outside Diameter (mm) Max 260
Max feeding Length Unlimited
Max feeding Speed 0-64 m/min (Two Gears)
Max. Cutting Speed 45 times/min
Max Roller Pressure 0~10 tons adjustable
Program Storage 999 Max
Instruction value of wire feed ±0.01～±9999.99mm
Instruction value of cam ±0.10～±359.90
Servo motor of wire feed (kw) 55
Reducer Motor (kw) 2x15 kw
Servo motor of cam (kw) 4.4 with brake
Servo motor of upper (kw) 30(plus reducer)
Servo motor of lower (kw) 30(plus reducer)
Servo motor of pitch (kw) 7.5
Machine size (mm) 3468×2400×2800
Machine Weight (kg) 24000 Kg
power 380V 50Hz 3-Phase
Wire Feeder Capacity (YLSK-X2500) 2500 kg, 2500mm Diam
