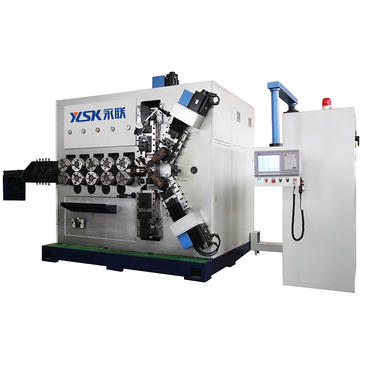

YLSK-7200CNC computer coiling spring machine is mainly used for rolling high precision large diameter variable pitch Compression Spring manufacturing.
Enquire Now| Parameters/Model | YLSK-7200CNC |
| Wire diameter (mm) | Ø8.0～Ø18.0 |
| Axis Count | 7 Axis |
| Outside Diameter (mm) | Max 260 |
| Max feeding Length | Unlimited |
| Max feeding Speed | 0-64 m/min (Two Gears) |
| Max. Cutting Speed | 45 times/min |
| Max Roller Pressure | 0~10 tons adjustable |
| Program Storage | 999 Max |
| Instruction value of wire feed | ±0.01～±9999.99mm |
| Instruction value of cam | ±0.10～±359.90 |
| 送线伺Servo motor of wire feed (kw) | 55 |
| Reducer Motor (kw) | 2x15 kw |
| Servo motor of cam (kw) | 4.4 with brake |
| Servo motor of upper (kw) | 30(plus reducer) |
| Servo motor of lower (kw) | 30(plus reducer) |
| Servo motor of pitch (kw) | 7.5 |
| Machine size (mm) | 2888×2400×2850 |
| Machine Weight (kg) | 22500 Kg |
| power | 380V 50Hz 3-Phase |
| Wire Feeder Capacity (YLSK-X2000) | 2000 kg, 2450mm Diam. |
