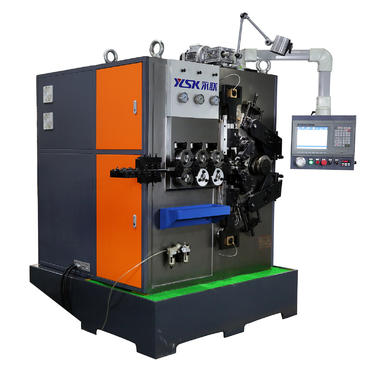

YLSK-550, 560 spring machine computer controller divided into wire feeding, cutting off, pitch and axis diameter totally Five Axis Machine.
Enquire Now|
Model |
YLSK-550 |
YLSK-560 |
|
Wire diameter (mm) |
Ø2.0～Ø5.0 |
Ø2.0～Ø6.0 |
|
Axis Count |
5 Axis |
5 Axis |
|
Outside Diameter (mm) |
Max.o110 |
Max.120 |
|
Max feeding Length |
Unlimited |
Unlimited |
|
Max feeding Speed |
90 m/min |
110 m/min |
|
Program Storage |
2000 Max |
2000 Max |
|
Instruction value of wire feed |
±0.01～±9999.99mm |
±0.01～±9999.99mm |
|
Instruction value of cam |
±0.10～±359.90 |
±0.10～±359.90 |
|
Servo motor of wire feed(kw) |
11 |
15 |
|
Servo motor of cam(kw) |
2.9 |
2.9 |
|
Servo motor of upper(kw) |
4.4 |
4.4 |
|
Servo motor of lower(kw) |
4.4 |
4.4 |
|
Servo motor of pitch(kw) |
1.3 |
1.3 |
|
Machine size(mm) |
2100×1500×1750 |
2170x1350x2260 |
|
Weight(kg) |
3000 kg |
3250 kg |
|
power |
380V 3-Phase |
380V 3-Phase |
