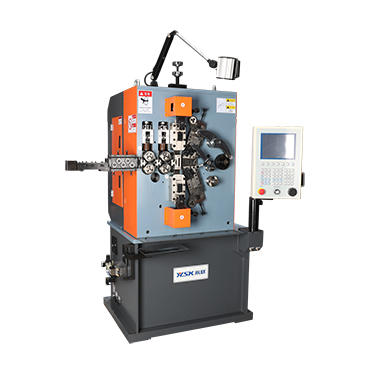

YLSK-535 controlled with Five Axis, divided into Cam, Wire feeding and Z-Axis for pitch control, Upper & Lower Cutter. Wire feeding is controlled by a single wire feeding motor.
Enquire Now|
Model |
YLSK-535 |
|
Wire Diameter (mm) |
Ø0.8 ～ Ø3.5 |
|
Axis Count |
5- Axis |
|
Outside Diameter (mm) |
Max Ø 80 |
|
Max feeding Length |
Unlimited |
|
Max feeding Speed |
0-127m / min |
|
Instruction value of wire feed |
± 0.01 ～ ± 9999.99mm |
|
Instruction value of cam |
±0.10～±359.90 |
|
Servo motor of wire feed |
5.5 Kw |
|
Servo motor of wire pitch |
1.0 Kw |
|
Servo motor of cam |
2.0 Kw |
| Servo motor For Upper Cutter | 2.0 Kw |
| Servo motor For Lower Cutter | 2.8 Kw |
|
Machine size (LXWXH) |
1400×1000×2000 mm |
|
Weight |
850 Kg |
|
Power |
380V 3-Phase |
