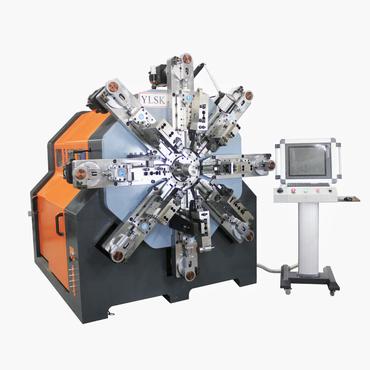

YLSK-1250 Universal cam less spring machine can manufacture various types of compression springs, tension spring, torsion spring, conical shaped spring, flat spring and other special shaped spring. Applications are Agricultural Equipment's, Automobile Industry, Electronic Industry, Home appliances, Sports equipment, Toys and other industries where accuracy & precise operations needed.
Enquire Now| Machine Model Name | YLSK-1250 | YLSK-1260 | YLSK-1280 |
|---|---|---|---|
| Wire Diameter Range (MM) | Ø1.2 ~ Ø5.0 | Ø2.0 ~ Ø6.0 | Ø3.0 ~ Ø8.0 |
| Axis Count | 12-13 Axis | 12-13 Axis | 12-13 Axis |
| Max Feeding Length | Unlimited | Unlimited | Unlimited |
| Max Wire Feed Speed | 80 m/min | 70 m/min | 70 m/min |
| Cam Setting Value (MM) | ±0 ~ ±180 | ±0 ~ ±180 | ±0 ~ ±180 |
| Wire Feed Servo (KW) | 7.5 | 7.0 | 11.0 |
| Wire Rotation Servo (KW) | 2.7 | 4.5 | 4.5 |
| 8-Arm Servo Motor (KW) | 8x1.8 | 8x2.7 | 8x4.4 |
| Quill Servo (Z-axis) KW | 1.3 | 1.8 | 1.8 |
| Coiling Spinner (Optional) KW | 1.2 | 1.2 | 2.0 |
| Machine size (LxWxH) (MM) | 2700X1950X2180 | 2950X2500X2300 | 2950X2500X2300 |
| Weight (Kg) | 4200 | 6500 | 7000 |
| Power | 380V 3P | 380V 3P | 380V 3P |
