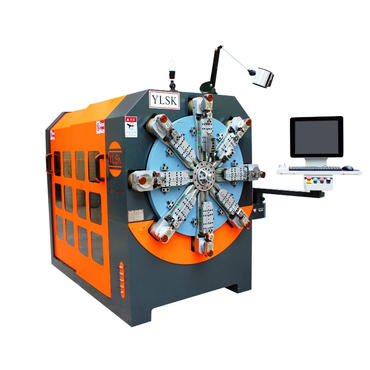

YLSK-1240 Universal Cam less Spring forming Machine allows easy programming, precise & stable wire feeding mechanism. Twelve axis synchronous operation, Divided into Eight slide axis, One Mandrel (Quill) axis, One Wire feeder, One Wire Rotation and One Coiling Spinner (optional) axis. Equipped with Taiwan-Hust & Arcuchi- China computer controller Options. Japanese-Sanyo Denki Servo Motors with additional customized options provided.
Enquire Now| Model | YLSK-1240 |
|---|---|
| Machining wire diameter(mm) | Ø0.8 ~ Ø4.0 |
| Axis Count | 12 Axis |
| Max feeding Length | Unlimited |
| Program Storage | 999 Max |
| Instruction value of wire feed | ±0.01 ~ ±9999.99mm |
| Instruction value of cam | ±0.10 ~ ±359.90 |
| Servo motor of wire feed(kw) | 5.5 |
| Servo motor of cam(kw) | 8X1.2 |
| Servo motor of Quill (z-axis)(kw) | 1 |
| Servo motor of wire rotation(kw) | 2.7 |
| Servo motor of Coiling Spinner (Optional)(kw) | 1 |
| Machine size (LxWxH) (mm) | 2400X2000X1900 |
| Weight (kg) | 3500 |
| Power | 380V 3-Phase |
