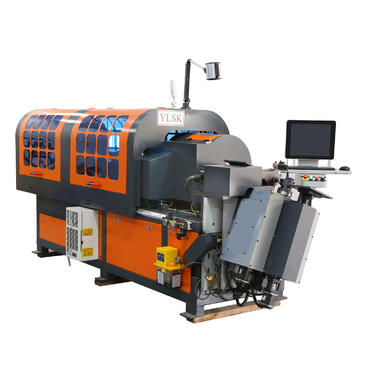

This Machine is specially designed for manufacturing both 2D & 3D parts. Wire feeding and special high-speed forming mechanism helps for multiple products & wide applications, Suitable for 3D designs and complex wire bending shapes. 10-Axis & Taiwan controller system, English and Chinese language Options, Easy to operate. Equipped with 10 Servo motors, More convenient, Faster, Stable, Reliable, Easy to operate, No cutting impact & heating, Low tool loss, Automatic alarm system. Applications: Automobile parts(Seat Frames), Fitness equipment, Industrial equipment, Kitchen racks, Trolley, Agricultural Equipment's, Manufacturing Industries & various special purpose shapes of wire. & many more special purpose designs as well.
Enquire Now| Model | YLSK-1080W |
|---|---|
| wire diameter (mm) | Ø2.0 ~ Ø8.0 |
| Axis Count | 10 Axis |
| Wire feed Axis | 4.5 KW |
| Wire feed Box (B/A) | 2.7 KW |
| Wire Rotation Axis | 2.7 KW |
| Bending (Outside) Axis | 1.2 KW |
| Bending (Inside) Axis | 1.2 KW |
| Cutter Axis | 2.0 KW |
| Wire Bending (U/D) | 0.4 KW |
| Support table (U/D) Axis | 0.75 KW |
| Bending Outside (U/D) Axis | 1.0 KW |
| Bending (L/R) | 2.0 KW |
| Machine size (mm) | 4000×2000×1900 |
| Weight (kg) | 3000 |
| Power | 220V 3-Phase |
